Hybrid Multilayer High Frequency PCB Board Bulit On Rogers 20mil RO4003C and FR-4

  • 1
  • 2
  • 3

Brand Name : Bicheng Technologies Limited

Model Number : BIC-XXXX-V1.24

Certification : UL

Place of Origin : China

MOQ : 1

Price : USD 2.99-9.99 PER PIECE

Payment Terms : T/T, Western Union

Supply Ability : 45000 pieces per month

Delivery Time : 10 working days

Packaging Details : Vacuum

Number of Layers : 4 Layer, 6 Layer, Multilayer, Hybrid type (Mixed)

Glass Epoxy : RO4350B Rogers

Final foil : 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)

Final height of PCB : 1.0-5.0mm

Surface Finish : Bare copper, HASL, ENIG, Silver, OSP,etc.

Solder Mask Color : Green, Black, Blue, Yellow, Red etc.

Colour of Component Legend : Green, Black, Blue, Yellow, Red etc.

Test : 100% Electrical Test prior shipment

Contact Now

Hello Guys,

The mixed high frequency PCB introduced today is 4-layer board on Rogers core of 20mil RO4003C pressed with FR-4.

Hybrid Multilayer High Frequency PCB Board Bulit On Rogers 20mil RO4003C and FR-4

Firstly, it's a 4 layer structure. Layer 1 to layer 2 is 20mil Rogers core, which are the main wiring layers for the signal lines.

Layer 3 to layer 4 is the FR-4 core, which is connected by the Prepreg of FR-4.

Each layer is connected by plated through holes. This is a better method to keep the board cost effective.

The inner layer and out layer of copper is 1 ounce.

Let's take a look at its microsection chart.

Hybrid Multilayer High Frequency PCB Board Bulit On Rogers 20mil RO4003C and FR-4

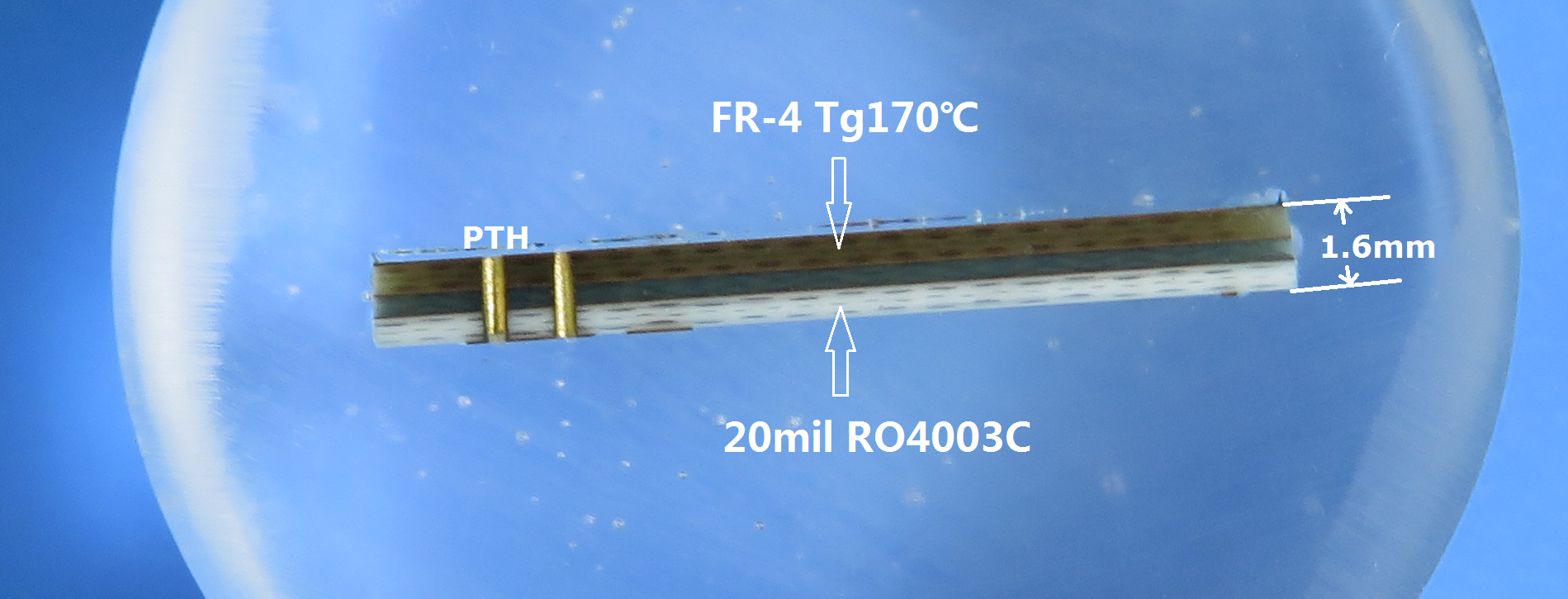

Here on the left is the PTH hole, the bottom is layer 1 to layer 2 which is high frequency material, the upper part is glass fiber material. The finished thickness of the plate is 1.6mm.

The color of solder mask and silkscreen are also commonly used in green and white. Surface finish on pads is immersion gold.

PCB Capability
PCB Type: Hybrid PCB, Mixed PCB
Mixed type: RO4350B + FR4;
　 RO4003C + FR4;
　 F4B + FR4;
　 RT/duroid5880 + FR4;
　 RT/duroid5880 + RO4350B
Solder mask: Green, Red, Blue, Black, Yellow
Layer count: 4 Layer, 6 Layer, Multilayer
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 1.0-5.0mm
PCB size: ≤400mm X 500mm
Surface finish: Bare copper, HASL, ENIG, Immersion tin, OSP
　 　

At present, the mature mixed pressing materials are as follows:

RO4350B + FR4;

RO4003C + FR4;

F4B + FR4;

RT/duroid5880 + FR4

RT/duroid5880 + RO4350B

We can provide you with prototype and mass production.

If you're interested in hybrid PCB, please feel free to contact us.

Thank you for your reading.
